Waveguide size

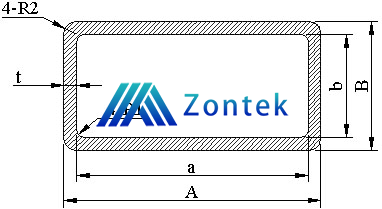

The standard modelFrequency RangeGHzInside section size(mm)The basic wall thickness (mm)
Chinese standardEIA-International standardBritish standard153-IEC     standardStarting frequency1.25 fcTermination of the frequency1.9 fcWidth  (a)Height  (b)The deviation between width and height±Maximum diameter of inner fillet R1
BJ3WR-2300/R30.320.49584.2292.1to be confirmed1.56
BJ4WR-2100/R40.350.53533.4266.7to   be confirmed1.55
BJ5WR-1800WG1R50.410.62457.2228.60.511.55
BJ6WR-1500WG2R60.490.75381190.50.381.53.18
BJ8WR-1150WG3R80.640.98292.1146.050.381.53.18
BJ9WR-975WG4R90.761.15247.65123.82to   be confirmed1.23.18
BJ12WR-770WG5R120.961.46195.5897.79to   be confirmed1.23.18
BJ14WR-650WG6R141.131.73165.182.550.331.22.03
BJ18WR-510WG7R181.452.2129.5464.770.261.22.03
BJ22WR-430WG8R221.722.61109.2254.610.221.22.03
BJ26WR-340WG9AR262.173.386.3643.180.171.22.03
BJ32WR-284WG10R322.63.9572.1434.040.141.22.03
BJ40WR-229WG11AR403.224.958.1729.080.121.21.625
BJ48WR-187WG12R483.945.9947.54922.1490.0950.81.625
BJ58WR-159WG13R584.647.0540.38620.1930.0810.81.625
BJ70WR-137WG14R705.388.1734.84915.7990.070.81.625
BJ84WR-112WG15R846.579.9928.49912.6240.0570.81.625
BJ100WR-90WG16R1008.212.522.8610.160.0460.81.27
BJ120WR-75WG17R1209.841519.059.5250.0380.81.27
BJ140WR-62WG18R14011.91815.7997.8990.0310.41.015
BJ180WR-51WG19R18014.52212.956.4770.0260.41.015
BJ220WR-42WG20R22017.626.710.6684.3180.0210.41.015
BJ260WR-34WG21R26021.7338.6364.3180.020.41.015
BJ320WR-28WG22R32026.3407.123.5560.020.41.015
BJ400WR-22WG23R40032.950.15.692.8450.020.31.015
BJ500WR-19WG24R50039.259.64.7752.3880.020.31.015
BJ620WR-15WG25R62049.875.83.7951.880.020.21.015
BJ740WR-12WG26R74060.591.93.09881.54940.01270.151.015
BJ900WR-10WG27R90073.81122.541.270.01270.151.015
BJ1200WR-8WG28R120092.21402.0321.0160.00760.150.76
BJ1400WR-7WG29R14001131731.6510.82550.00640.0380.76
BJ1800WR-5WG30R18001452201.29540.64770.00640.0380.76
BJ2200WR-4WG31R22001722611.09220.54610.00510.0380.76
BJ2600WR-3WG32R26002173300.86360.43180.00510.0380.76
