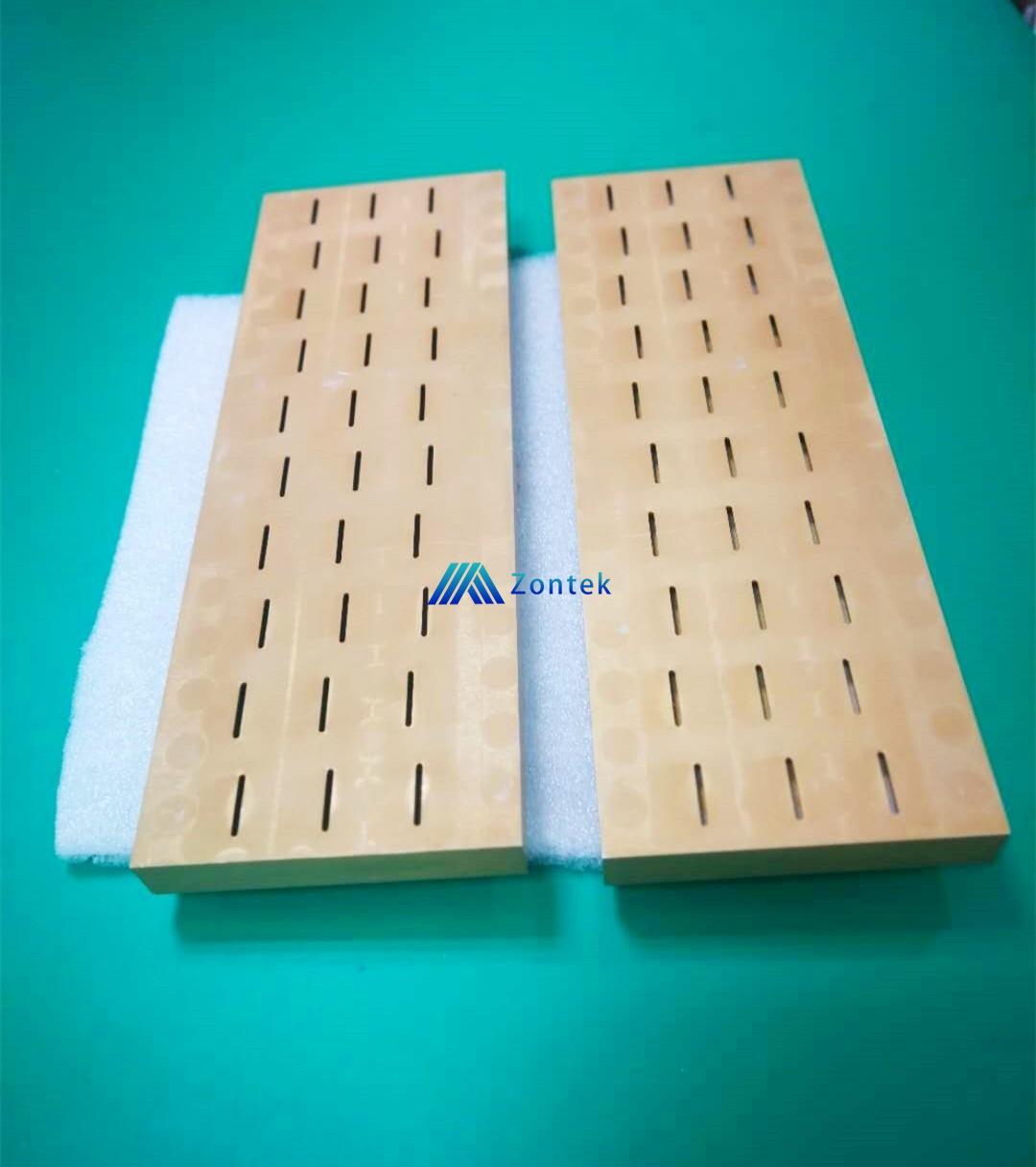

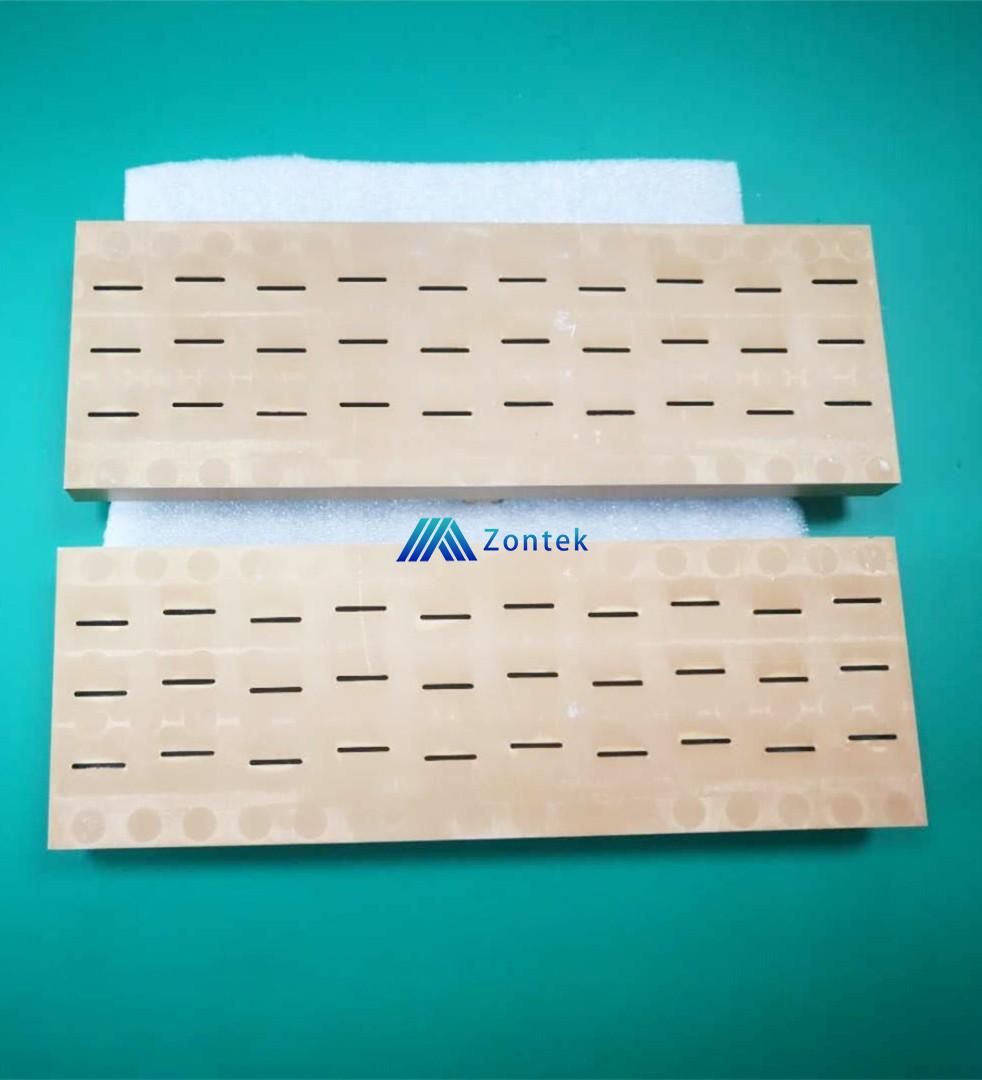

X band waveguide slot array antenna

  • Views:1866
DESCRIPTION INQUIRY US

1. Frequency: 9GHz-10GHz(X band)

2. VSWR:≤2 db

3. Gain: 21 typ.

4. Beam Width: E-plane 27.8°,H-plane 6.2°

5. Polarization: Linear

6. Power: peak power 10W, average power 5W

7. Size: 250*90*16(mm)

8. Connector: SMA-KFD

9. Material: Al

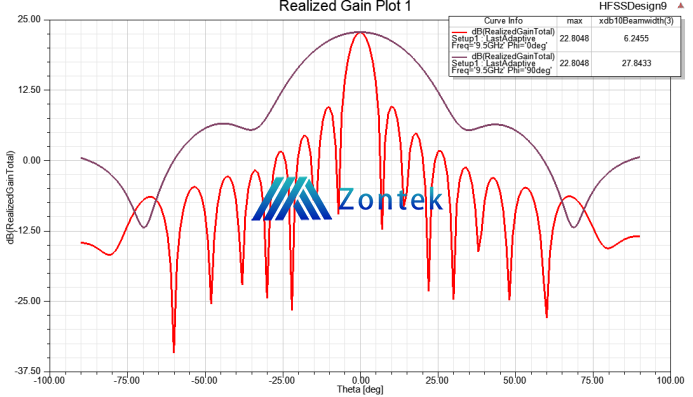

BW:

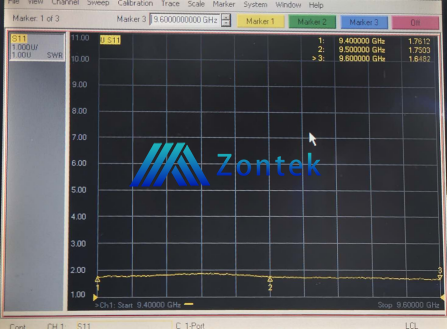

Test VSWR:

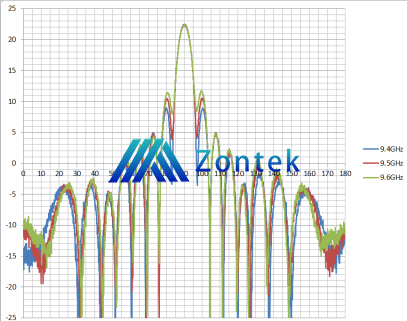

Test gain:
